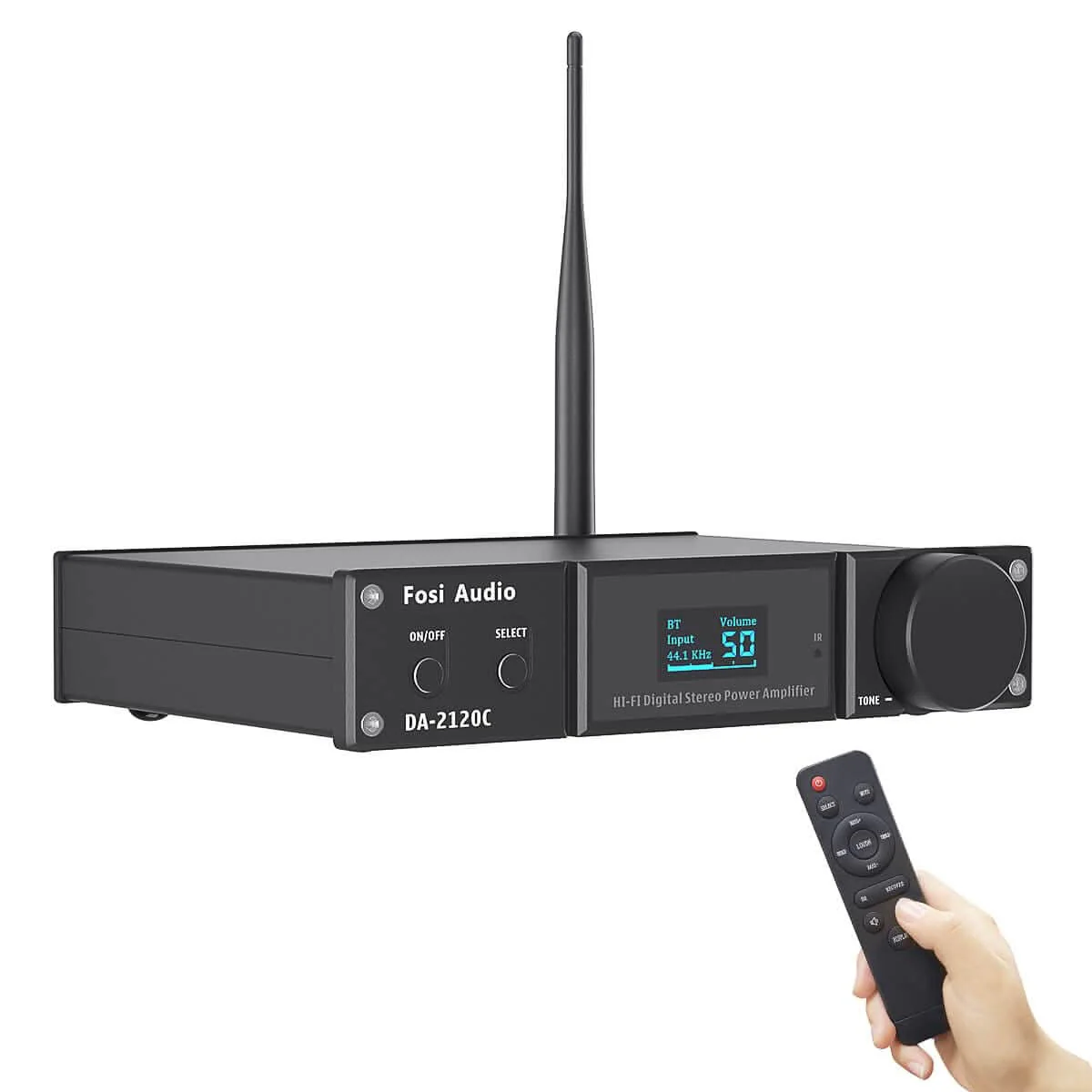

DA2120C 2.1-Channel Wireless DAC Amplifier with EQ Control | 120W×2 @ 4Ω Max Output
The DA2120C is a high-performance integrated DAC and stereo amplifier, delivering up to 120W per channel (4Ω load). It easily drives most home bookshelf speakers, desktop speakers, outdoor passive speakers, and powered subwoofers—offering low distortion and acoustically accurate sound reproduction for a truly transparent listening experience.
Clear, Intuitive Operation
A bright digital LED display lets you view all settings at a glance. The included remote control provides hassle-free access to input mode, volume, bass, and treble adjustments.
Premium Texas Instruments Amplifier Chip
Built around the Texas Instruments TAS5352A chip, designed for 4-Ω bridge-tied load (BTL) applications, delivering up to 120W per channel with low harmonic distortion, low noise, and low idle current. The chip integrates a complete protection system to safeguard the amplifier against a wide range of fault conditions.
Multi-Input, 2-in-1 DAC + Amplifier

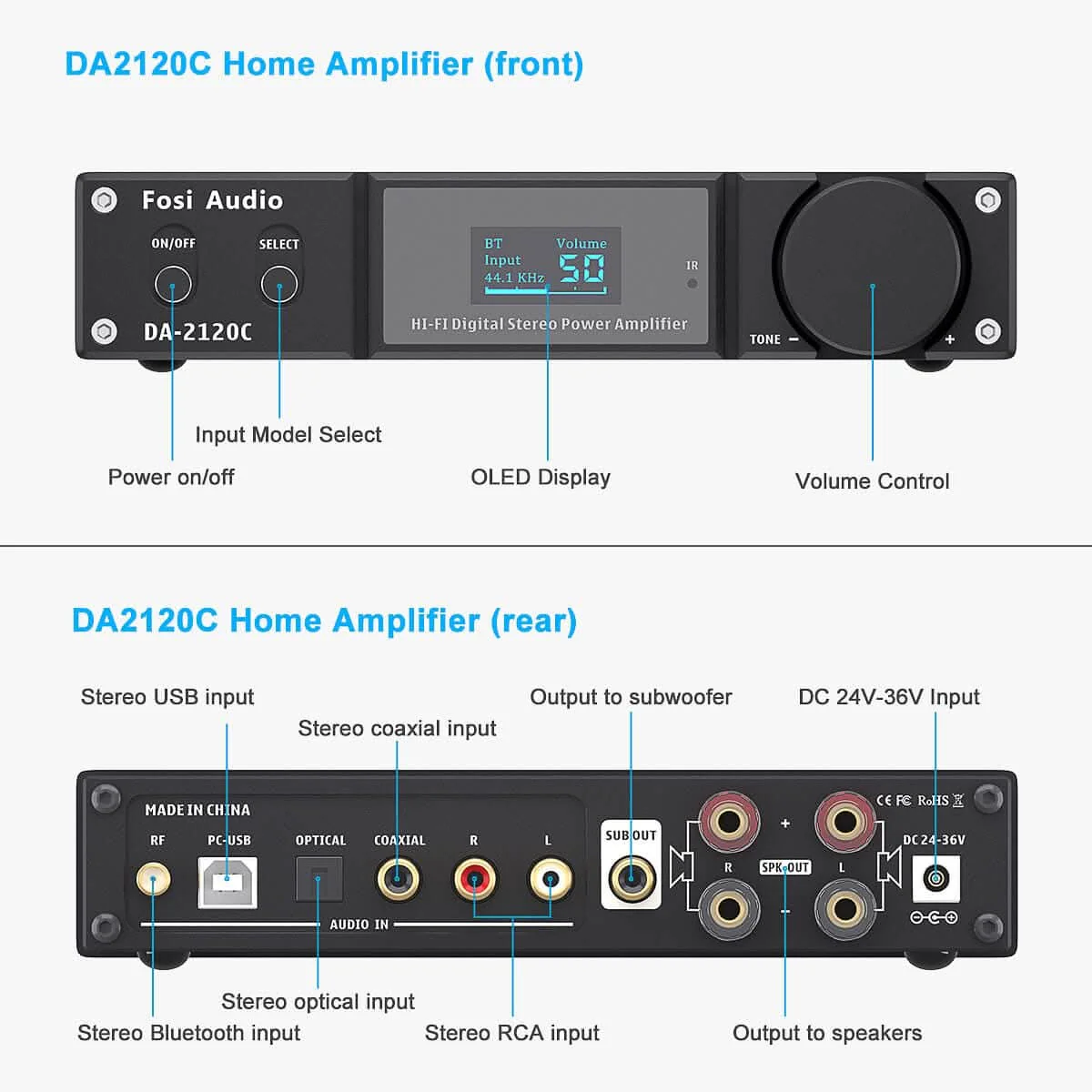

Housed in a high-quality aluminum enclosure, the DA2120C supports Bluetooth / RCA / PC-USB / Coaxial / Optical inputs, making it easy to build a versatile stereo sound system.
Bluetooth 5.0 with Synchronized High-Fidelity Streaming
Equipped with Bluetooth 5.0 for low-latency, high-speed audio transmission, ensuring perfectly synchronized sound. Enjoy wireless freedom without compromising on fidelity. The 6dBi high-gain antenna provides stable streaming over distances up to 65 ft (20m).
Package Contents
DA2120C stereo amplifier ×1, Bluetooth antenna ×1, 32V/5A power supply ×1, remote control ×1, PC-USB cable ×1, optical cable ×1, user manual ×1
Worry-Free Support
Backed by a 24-month worry-free warranty and friendly customer service for complete peace of mind.
Specifications
| Specifications | Details |
|---|---|
| Model | DA2120C |
| Output Power | 2 × 125W at 10% THD+N Into 4 Ω 2 × 100W at 10% THD+N Into 6 Ω 2 × 80W at 10% THD+N Into 8 Ω |
| Frequency Range | 20Hz - 20kHz (±1 dB) |
| Bass frequency | 20Hz-200Hz |
| THD | ≤ 0.01% |
| SNR | ≥ 105dB |
| USB Chip | Cmedia CM6642 SUPPORT 24bit/192Khz |
| Amplifier Chip | American TI TAS5352A |
| Bluetooth Chip | Qualcomm QCC3031 Bluetooth 5.0 chip supports aptX, aptX-HD, SBC, AAC |
| DAC Chip | American Cirrus CS8422 chip USB, coaxial optical fiber Supported sampling rate 24bit/192Khz |
| Device Dimension | L180*W130*H38mm (7*5*1.5in) |
| System Supported | XP/W7/W8/W10/MAC/Linux |
| Power Supply | 32V 5A |
What‘s in the box？
| Item | Quantity |
|---|---|
| DA2120C Amplifier | x 1 |
| 32V 5A Power Supply | x 1 |
| Remote Control | x 1 |
| USB Cable | x 1 |
| Optical Cable | x 1 |
| AC Cord | x 1 |
| User’s Manual | x 1 |
DA2120C User Manual
